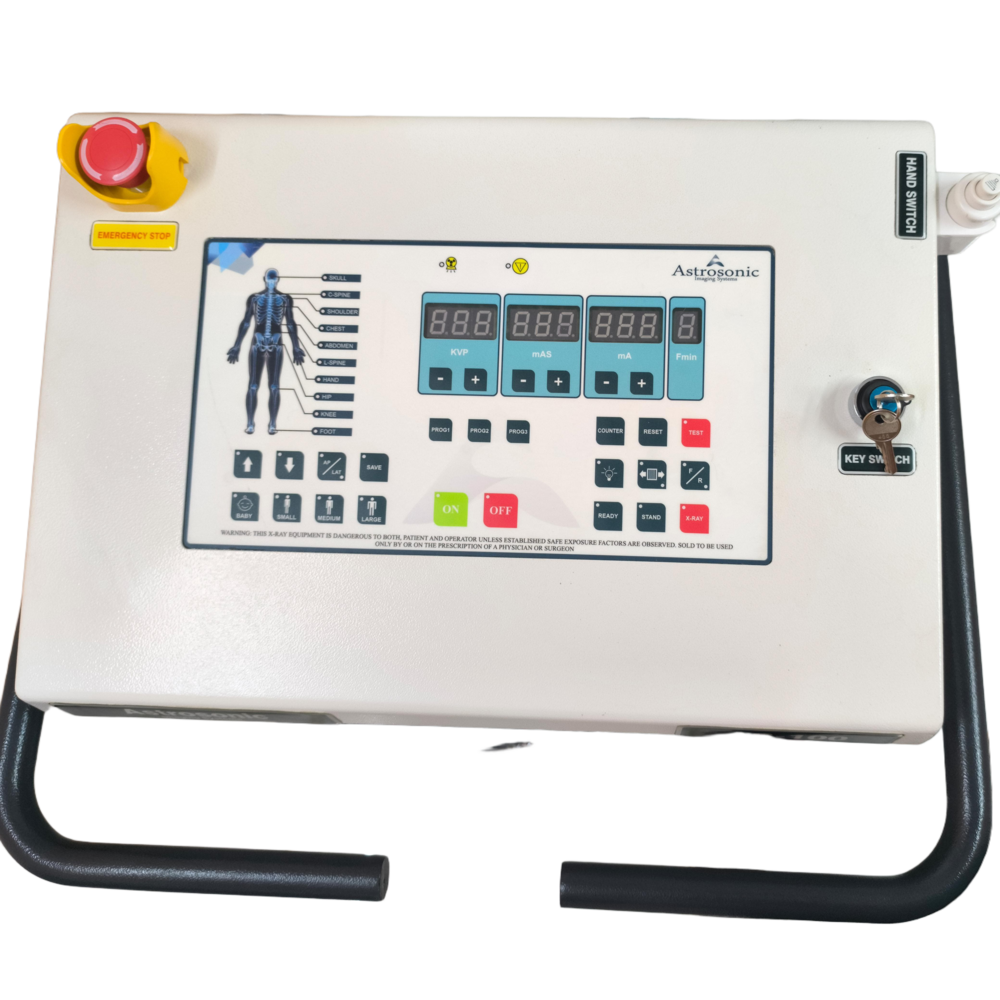

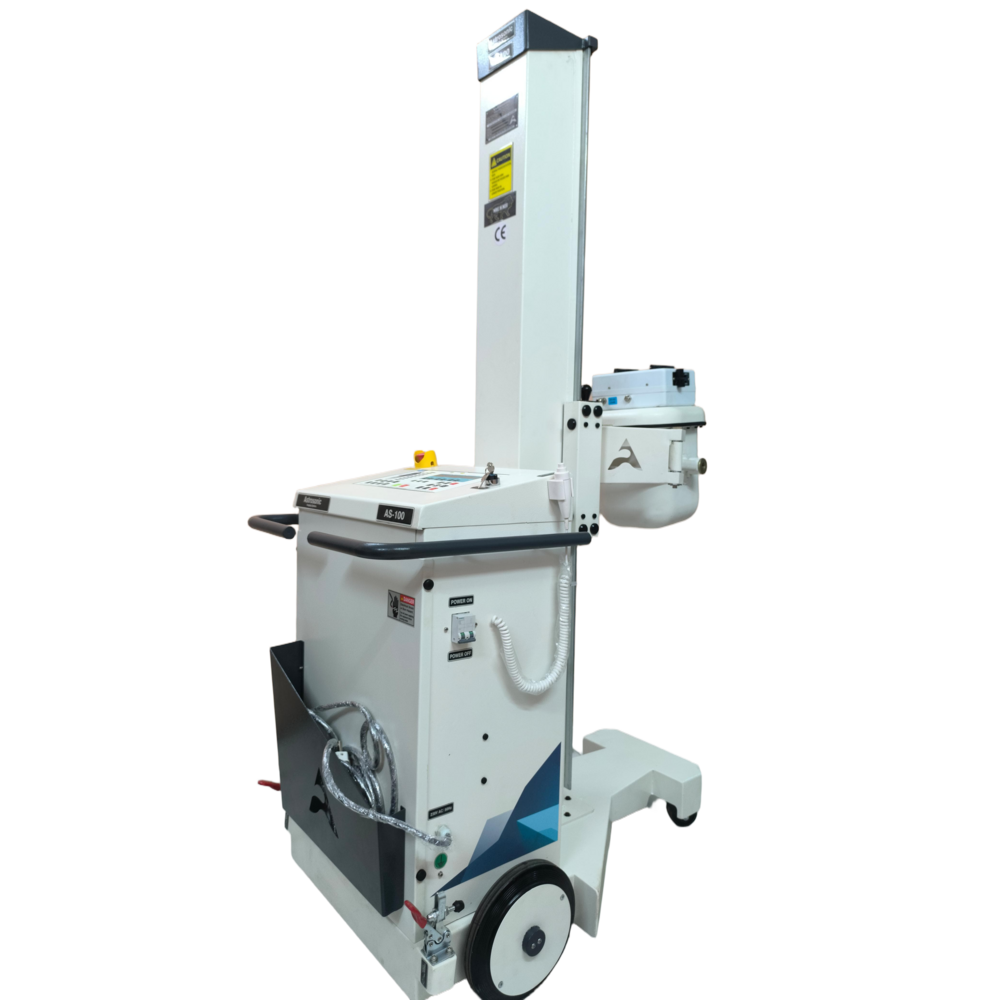

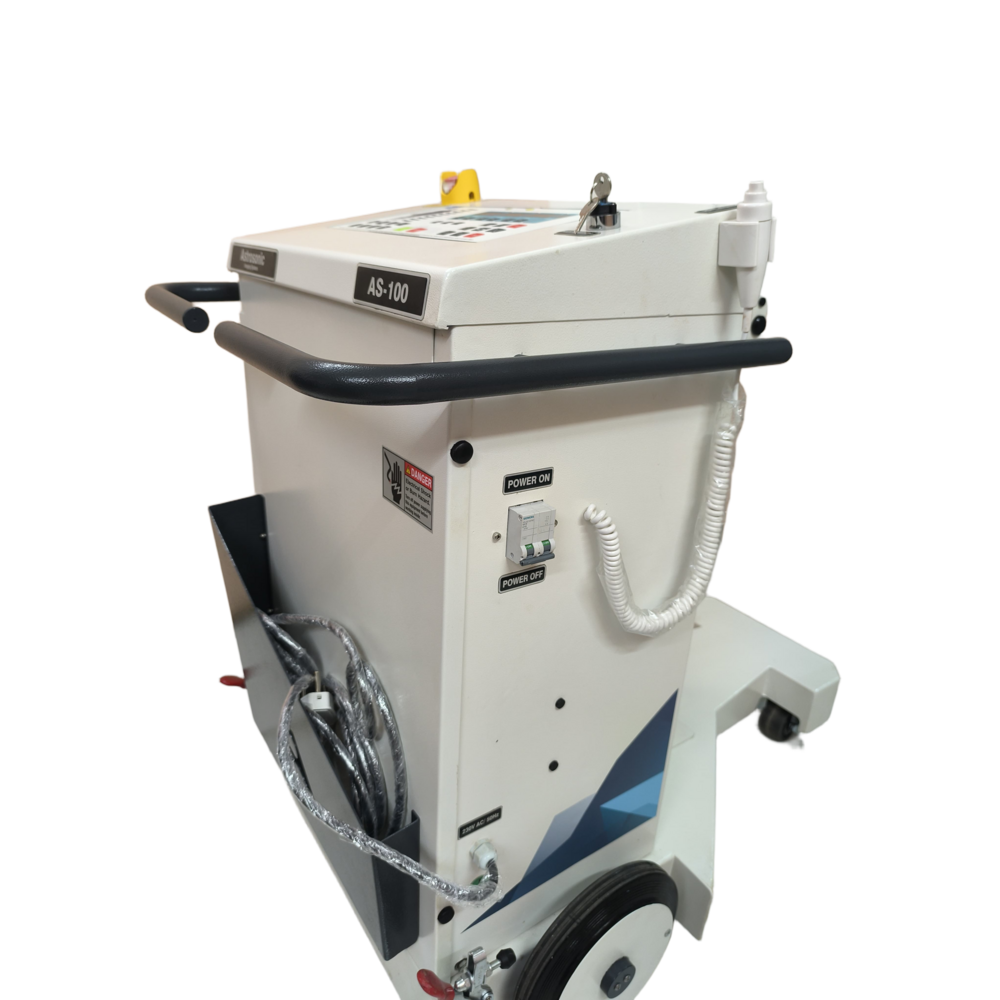

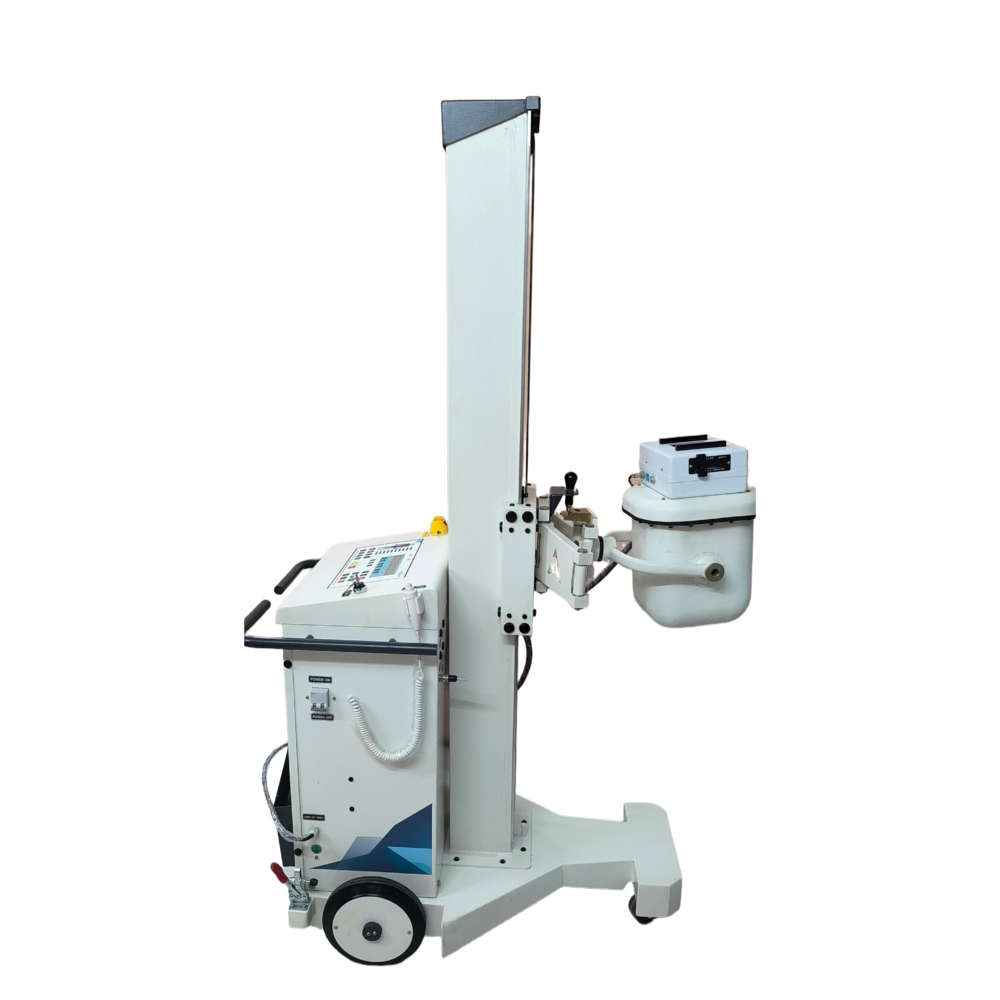

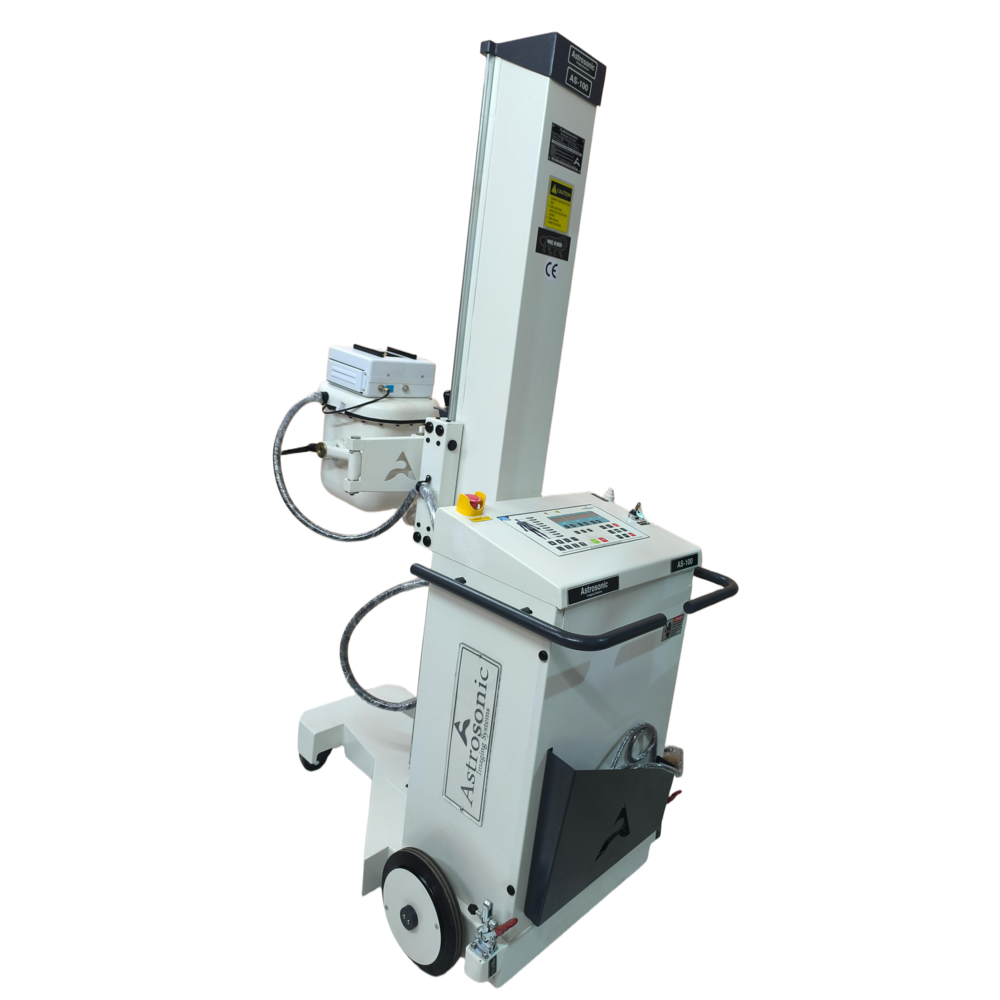

Send InquiryAS-100 mA Digital Mobile X-Ray Machine
AS-100 mA Digital Mobile X-Ray Machine Specification
- Technology
- Line Frequency
- Portable
- Yes
- Use
- Medical
- Condition
- New
- Warranty
- 1 Year
- Color
- White
- Size
- Standard
- Material
- MS Powder Coated
- Operating Temperature
- 0-70 Celsius (oC)
- Humidity %
- 95
- Ray Frequency Range
- 50-60 Hertz (HZ)
- Exposure Time Range (in Sec)
- 6 Seconds
- Usage
- Medical Diagnostic
- Power Source
- Electric
- Power Consumption
- 8 Kilowatt (kW)
- Working Voltage
- 230V
- Weight
- 200 Kilograms (kg)
AS-100 mA Digital Mobile X-Ray Machine Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 20 Pieces Per Month
- Delivery Time
- 2 Week
- Main Domestic Market
- All India
About AS-100 mA Digital Mobile X-Ray Machine
Product Highlights
- Maximum mobility, maneuverability, making the machie easy to move.
- Smaller foot print convenient to move through lifts & narrow corridor, into ICU's, OT's & Wards also suited for individual clinics and polyclinics.
- Horizontal & Vertical travel of arms for better positioning for bedside & trauma
General Specifications
GENERATOR RATING
- Radiography 100mA at 100kVp
- Fluoroscopy 5mA at 100kVp
TUBE VOLTAGE
- Radiography 40kVp to 100kVp (2kVp steps)
TUBE CURRENT
- Radiography 25mA, 50mA, 100mA
TIMER
- Radiography 0.02 sec to 10sec Solid state (495 steps)
- POWER : 8KW
POWER SUPPLY
- Single Phase 230 V, 50/60 Hz, 10KVA 0.6 Ohms Line resistance
SELF-CONTAINED TUBE HEAD SPECIFICATION
- Rectification Full-wave, rectified
X-RAY TUBE
- Stationary Anode, 40 KHU, 2.8mmX2.8mm Focal Spot
OVER ALL DIMENSIONS
- 1200mm Length
- 650mm Width
- 1880mm height
MOVEMENT
- Up/down fully counter -balance
- Vertical Travel 1300mm
- In/Out Travel 400mm
- Angular Travel +80 deg
- Tube Angulation Full rotation
Operating Environment
- Operation temperature/Humidity: 5ÂC-40ÂC / 0%-90%(non-condensing)
- Storage temperature/Humidity: -40C-70C / 5%-95%(non-condensing)
