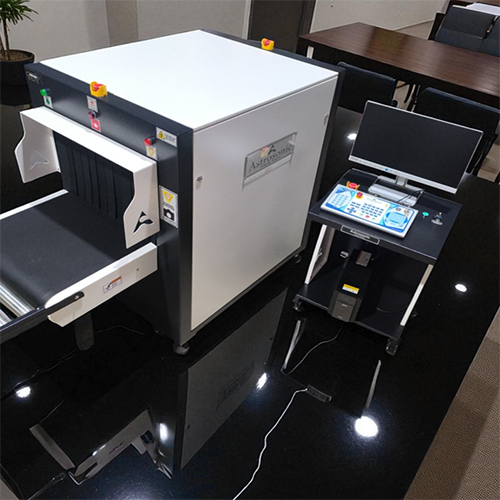

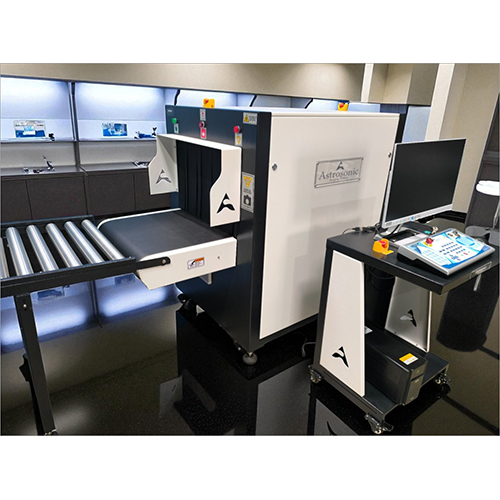

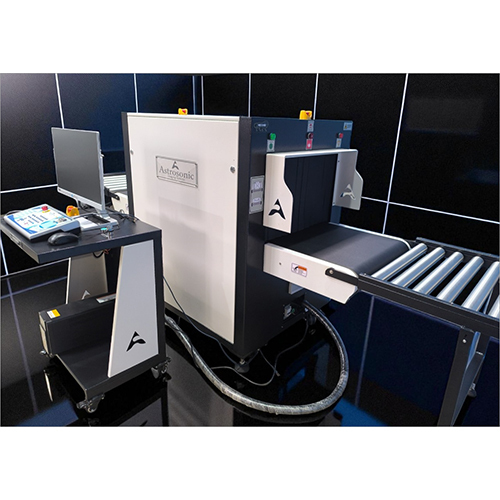

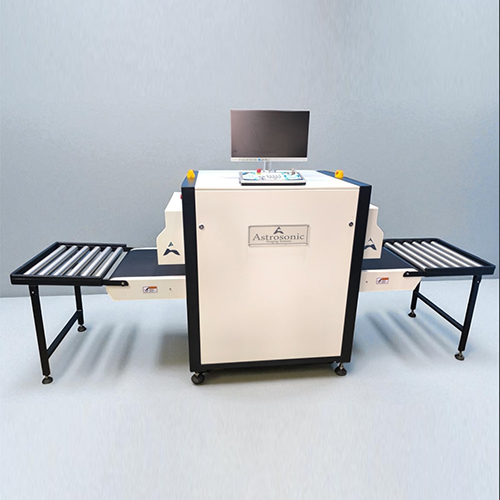

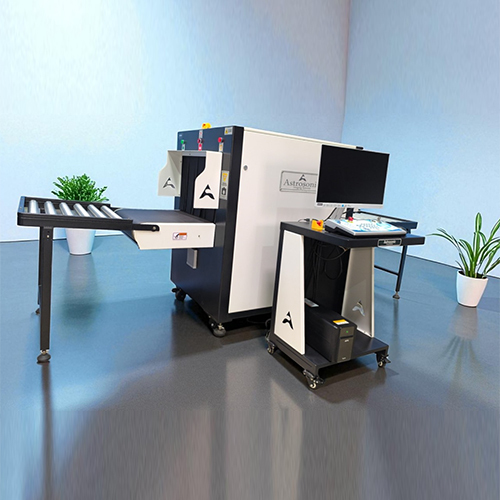

AS-6550 X-Ray Baggage Scanner

Product Highlight

• AI Based
• Multilingual operation
• Automatic built in test and self diagnosis
• Secure access Key
• Continuous working 10000 hours above
• Threat alert and material classification
• International standard configuration:
• Network-Ready
• Energy saving design
• One key turn off
• Drugs and explosives inspection
• Indication of the date and time

• Unit weight: 600 kg
• Unit size: 2030(L)*900(W)*1370(H) mm
• Tunnel size(mm) : 650(L)*500(W)
• Conveyor Speed(m/s) : 0.2
• Conveyor height(mm) : 700
• Conveyor Max Load(kgs): 150
• Penetration: Typical 35mm steel, guarantee 34mm steel
• Wire Resolution: Typical AWG40, guarantee AWG38
• X-Ray Leakage: Less than 0.1mR /hr
• Power consumption: Max0.5KW
• Film Safety: ISO1600 Film

• X-Ray generator: 80KV,0.6mA oil cooling, from bottom to top (160 kv, 1.2mA optional)
• Computer: CPU:Cortex A9,1TB Harddisk
• Monitor : Dell or Acer, 22" LED screen, resolution 1280*1024 pixels
• Operation System: Linux (Windows optional)

• Operation temperature/Humidity: 5C-40C / 0%-90%(non-condensing)
• Storage temperature/Humidity: -40C-70C / 5%-95%(non-condensing)
• Operation Power: 220VAC(-/+10%) 50 -/+3Hz

• Product Size: 2030* 900 * 1370mm (L xW x H)
• Tunnel Size: 650* 500mm (width x height)
