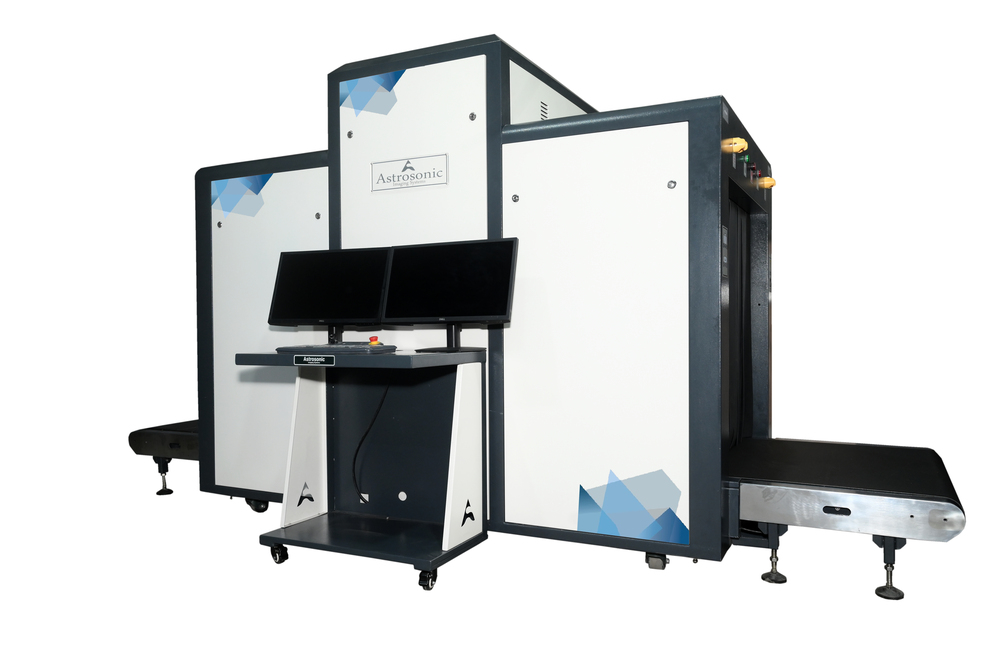

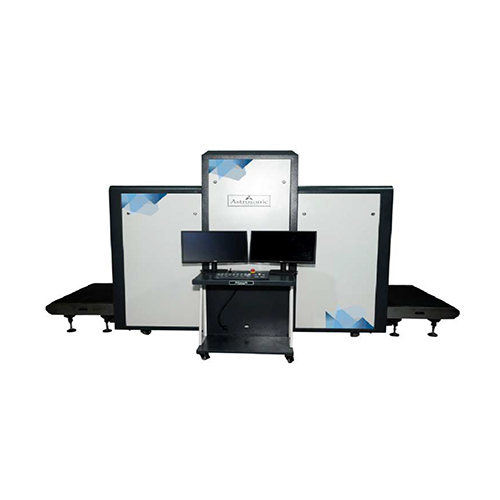

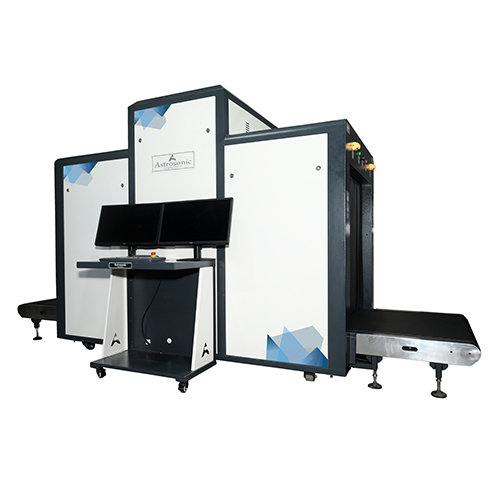

Send InquiryAS-100100 X-Ray Baggage Scanner
Price 1400000.0 INR/ Piece
MOQ : 1 Piece
AS-100100 X-Ray Baggage Scanner Specification
- Operating Mode
- Manual , Auto
- Dimension (L*W*H)
- 2350(L)*1294(W)*1903(H) Millimeter (mm)
- Frequency
- 53 Hertz (HZ)
- Mounting Type
- Floor Standing
- Usage
- Industrial
- Color
- Black
- Alarm
- Beep
- Weight
- 940 Kilograms (kg)
- Temperature Range
- -40C-70C Celsius (oC)
- Warranty
- 1 Year
- Material
- PVC
- License Free
- No
- Size
- 1000 (L)*1000(W)
- Technology
- AI Based
- Special Features
- Easy to use
- Remote Control
- No
- Application
- Railway Station, Airport, Etc
- Screen Resolution
- 1920*1080 Pixels
- Power Supply
- Electric
AS-100100 X-Ray Baggage Scanner Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 500 Pieces Per Month
- Delivery Time
- 2 Week
- Main Domestic Market
- All India
About AS-100100 X-Ray Baggage Scanner
Product Highlights
- Multilingual operation
- Automatic built in test and self diagnosis
- Secure access Key Continuous working 10000 hours above
- Threat alert and material classification
- International standard configuration: Network-Ready
- Energy saving design
- One key turn off
- Drugs and explosives inspection
- Indication of the date and time
Standard Features
- 21.5" Flat Panel Monitor
- 6 Colour Imaging
- Colour and Black/ Imaging
- Geometric Image
- Distortion Correction
- High Penetration Function
- Organic/ Inorganic Imaging
- Pseudo Colour
- Real-Time Image Manipulation
- Atomic Z Number
- Material Discrimination
- 9Quadrant Zoom
- Continuous Scanning
- Continuous Zoom up to 32x
- Vertical Zoom Panning
- Auto Image Archiving
- Image Review
- Save Image (RGB)
- Image Annotation
- Network Ready
- Real-Time Self Diagnostics
- Baggage Counter
- Linux System
- Threat image Protection (TIP)
- Density Alert
- Entry/ Exit Roller Tables
- Heavy Duty Casters
- Uninterruptible Power Supply (UPS)
- With Operating Console
Optional Features
- Computer-Based Training
- Screen assist Software Test Case
- Dual Monitors
- Footmat Operator Interlock
- Radiati on Meter
- Single View
- Linux
General Specifications
- Unit weight: 940
- Unit size: 2350(L)*1294(W)*1903(H)
- Tunnel size(mm): 1000(L)*1000(W)
- Conveyor Speed(m/s): 0.2
- Conveyor height(mm): 341
- Conveyor Max Load (kgs) 1000
- Penetration: Typical 35mm steel, guarantee 34mm steel
- Wire Resolution: Typical AWG40, guarantee AWG38
- X-Ray Leakage: Less than 0.1mR /hr
- Power consumption: Max0.5KW
- Film Safety: IS01600 Film
Configuration
- X-Ray generator: 160KV,1.2mA oil cooling, from top to bottom
- Computer: CPU Cortex A9,1TB Harddisk
- Monitor : Dell or Acer. 22" LED screen, resolution 1280*1024 pixels
- Operation System: Linux or Windows
Software
- Image Enhancement: Color/BW, negative, high/low penetration. Stripping. general enhancement, and pseudo color,etc
- Image Recall: 30 images recallable, retrieval
- Image Archive: Up to 50,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
- Other Functions: Fault diagnosis, system time setting. detection blind dots delete, x-ray source setting(analog or digital), alarm setting. images setting software register, user management, TIP report, data setting(machine working time, x-ray source working time, baggage counter, etc.)
Operating Environment
- Operation temperature/Humidity: 5 deg C-40 deg C/0%-90%(non-condensing
- Storage temperature/Humidity: -40C-70C/5%-95%(non-condensing)
- Operation Power: 220VAC( -/+ 10%)50 -/+ 3Hz
