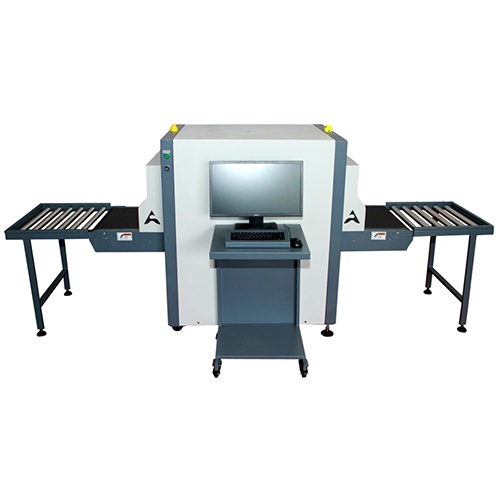

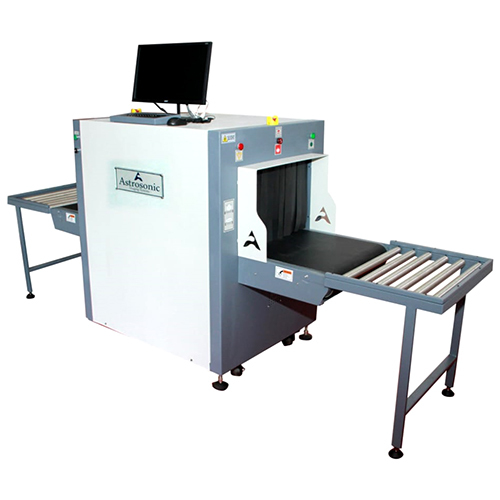

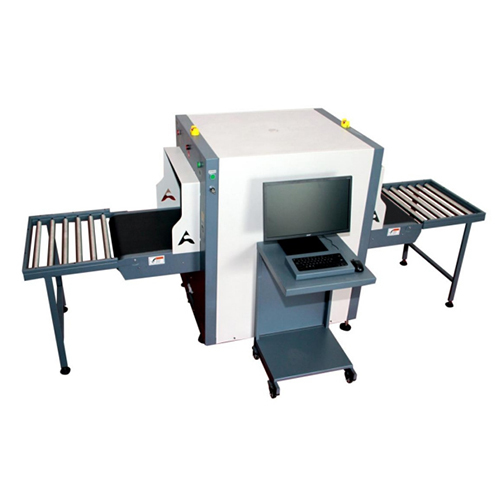

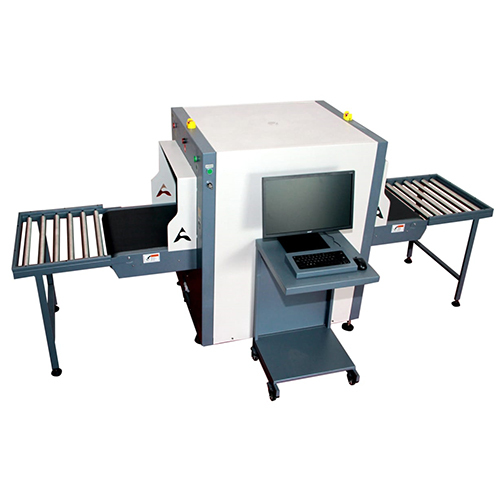

Send InquiryAS-5030 X-Ray Baggage Scanner
AS-5030 X-Ray Baggage Scanner Specification
- Weight
- 550 Kilograms (kg)
- Frequency
- 50 Hertz (HZ)
- Usage
- For Safety And Security
- Alarm
- Beep
- Warranty
- Yes
- Dimension (L*W*H)
- 1660(L)*750(W)*1190(H) Millimeter (mm)
- Material
- Metal
- Size
- 500 (L)*300(W)
- Mounting Type
- Floor Standing
- Color
- Black
- Remote Control
- No
- Application
- Railway Station, Airport, Etc
- Screen Resolution
- 1280*1024 pixels
- Power Supply
- Electric
AS-5030 X-Ray Baggage Scanner Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash in Advance (CID)
- Supply Ability
- 10 Pieces Per Month
- Delivery Time
- 2 Week
- Main Domestic Market
- All India
About AS-5030 X-Ray Baggage Scanner
Product Highlight
- AI Based
- Multilingual operation
- Automatic built in test and self diagnosis
- Secure access Key
- Continuous working 10000 hours above
- Threat alert and material classification
- International standard configuration:
- Network-Ready
- Energy saving design
- One key turn off
- Drugs and explosives inspection
- Indication of the date and time
General Specifications
- Unit weight: 550 kg
- Unit size: 1660(L)*750(W)*1190(H) mm
- Tunnel size(mm) : 500(L)*300(W)
- Conveyor Speed(m/s) : 0.2
- Conveyor height(mm) : 700
- Conveyor Max Load(kgs): 150
- Penetration: Typical 35mm steel, guarantee 34mm steel
- Wire Resolution: Typical AWG40, guarantee AWG38
- X-Ray Leakage: Less than 0.1mR /hr
- Power consumption: Max0.5KW
- Film Safety: ISO1600 Film
Configuration
- X-Ray generator: 80KV,0.6mA oil cooling, from bottom to top (160 kv, 1.2mA optional)
- Computer: CPU:Cortex A9,1TB Harddisk
- Monitor : Dell or Acer, 22" LED screen, resolution 1280*1024 pixels
- Operation System: Linux (Windows optional)
Software
- Image Enhancement: Color/BW, negative, high/low penetration, Stripping, general enhancement, and pseudo color,etc
- Image Recall: 30 images recallable,retrieval
- Image Archive: Up to 50,000 images stored automatically, enable transferring to USB disk, and convertingto JPG, BMP and other general formats.
- Other Functions: Fault diagnosis, system time setting, detection blind dots delete, x-ray source setting(analog ordigital), alarm setting, images setting software register, user management, TIP report, data setting(machine working time, x-ray source working time, baggage counter, etc.)
Operating Environment
- Operation temperature/Humidity: 5C-40C / 0%-90%(non-condensing)
- Storage temperature/Humidity: -40C-70C / 5%-95%(non-condensing)
- Operation Power: 220VAC(-/+10%) 50 -/+3Hz
- Product Size: 1660* 850 * 1270mm (L xW x H)
- Tunnel Size: 600* 400mm (width x height)
